Description

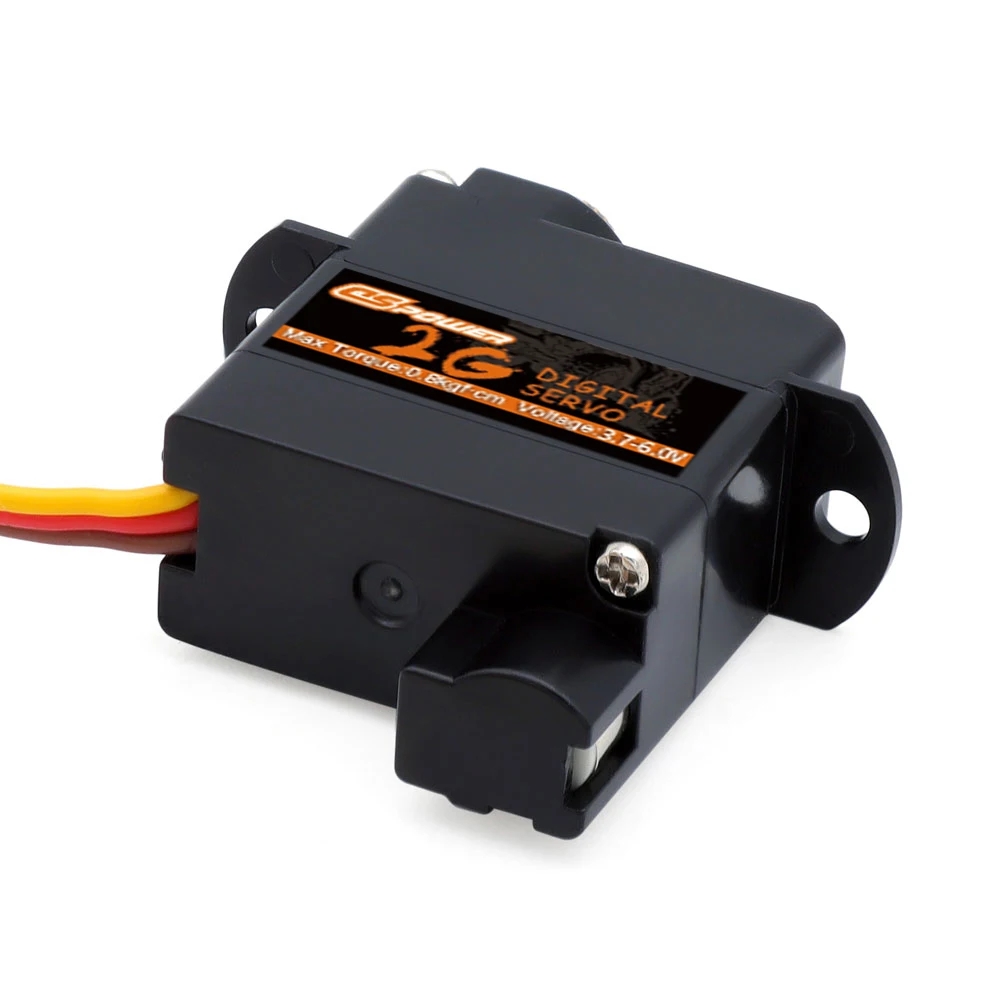

DSpower 2g motor Servo Plastic/Metal Gear Mini micro Servos for RC Car Airplanes Fixed-wing Helicopter Boat Duct Plane Robot
Features:
High performance digital standard
Low noise and long service life
Small volume and large torque
Suit for RC car boat helicopter model
Specifications:

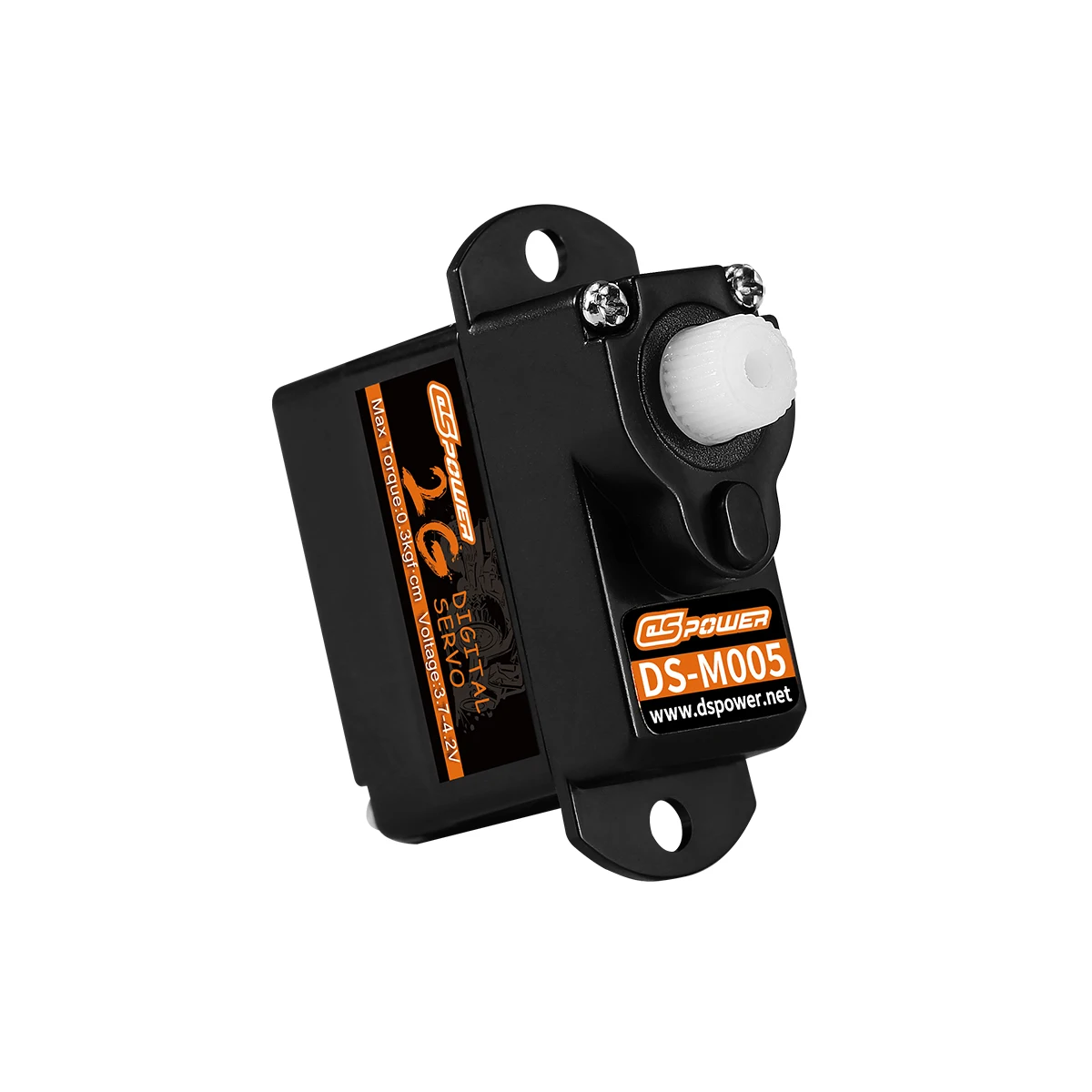

Item name: DSpower M005
Quantity: 1pcs
Operating Voltage : 3.7~4.2V DC
Max. Torque : 3.7V≥0.25kgf·cm ; 4.2V≥0.3kgf·cm
No Load Speed : 3.7V≦0.08sec/60° ; 4.2V≦0.06sec/60°
Stall Current:3.7V≦320mA;4.2V≦350mA
Consumption Current* (No Load):3.7V ≦50mA ;4.2V≦60mA
Max. Operating Travel Angle:180° ±10° (500~2500 us)
Dead Band Width: ≤ 1us
Mechanical Limit Angle: 360°
Communication Interface: PWM
Motor Type: Coreless motor
Case Material: ABS

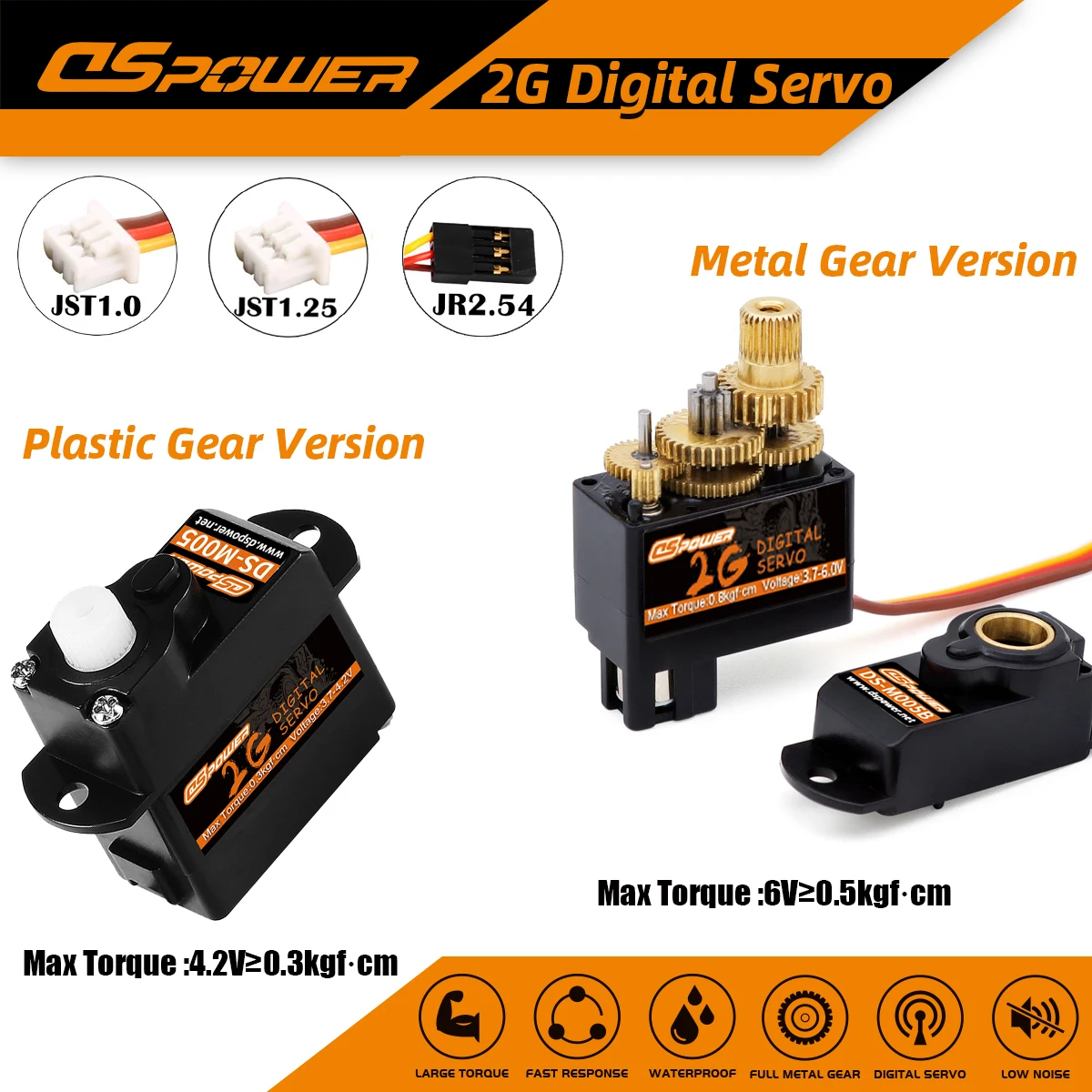

Gear Set Material : Plastic gear
Weight: 3.3 g

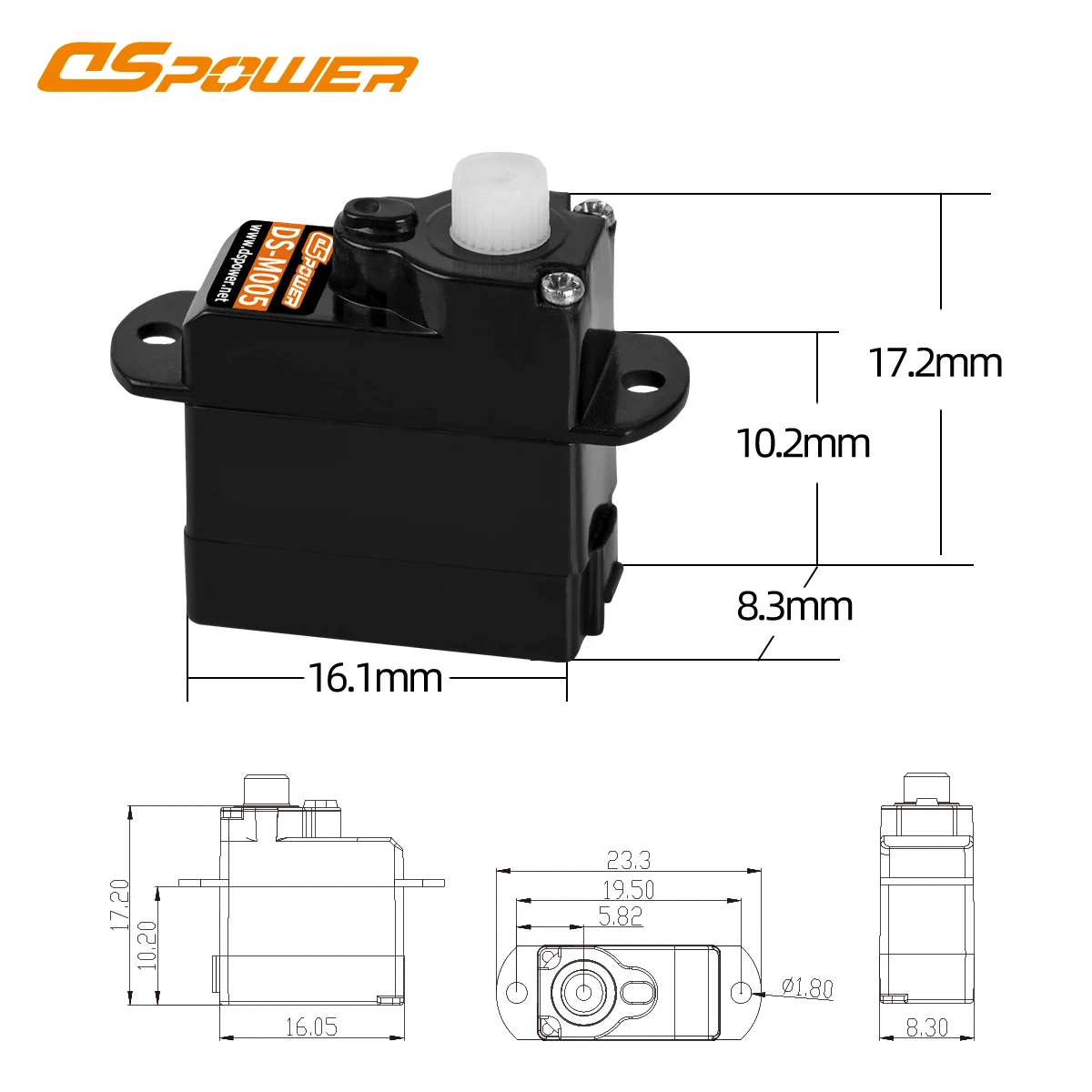

Size: 16.7 × 8.2 × 17mm
Length of Connector cable: JS1.0/JST1.25 200±5mm (exposed without plug)
Item name: DSpower M005
Quantity: 1pcs
Operating Voltage : 3.7~4.2V DC
Max. Torque : 3.7V≥0.25kgf·cm ; 4.2V≥0.3kgf·cm
No Load Speed : 3.7V≦0.08sec/60° ; 4.2V≦0.06sec/60°
Stall Current:3.7V≦320mA;4.2V≦350mA
Consumption Current* (No Load):3.7V ≦50mA ;4.2V≦60mA
Max. Operating Travel Angle:180° ±10° (500~2500 us)
Dead Band Width: ≤ 1us
Mechanical Limit Angle: 360°
Communication Interface: PWM
Motor Type: Coreless motor
Case Material: ABS
Gear Set Material : Plastic gear
Weight: 3.3 g
Size: 16.7 × 8.2 × 17mm
Length of Connector cable: JS1.0/JST1.25 200±5mm (exposed without plug)
Specifications:

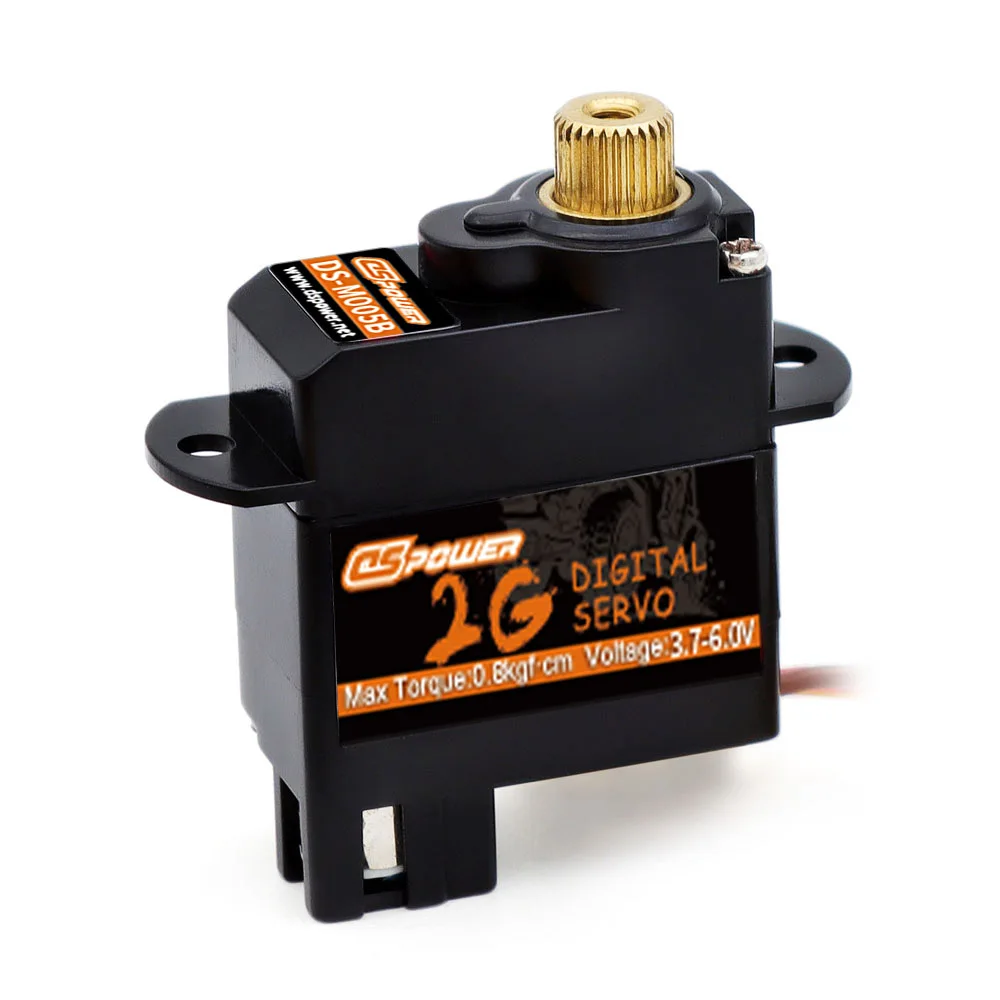

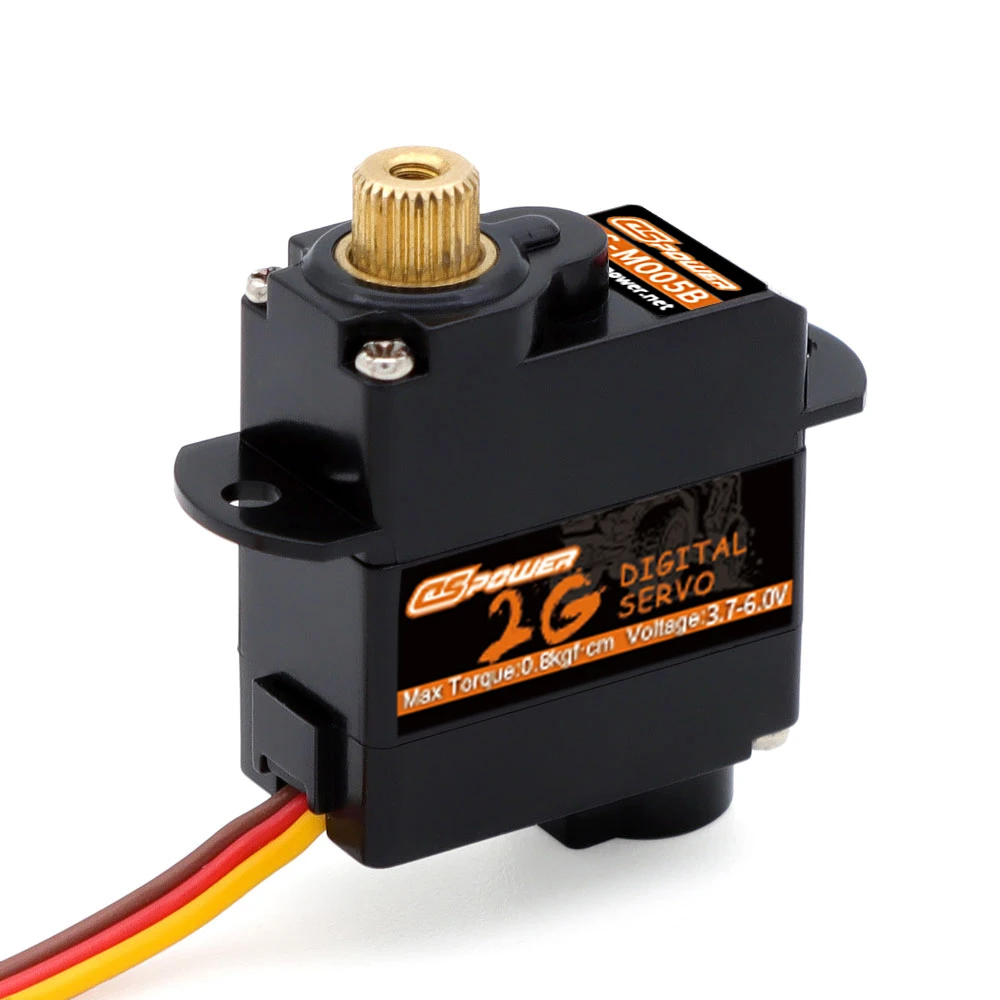

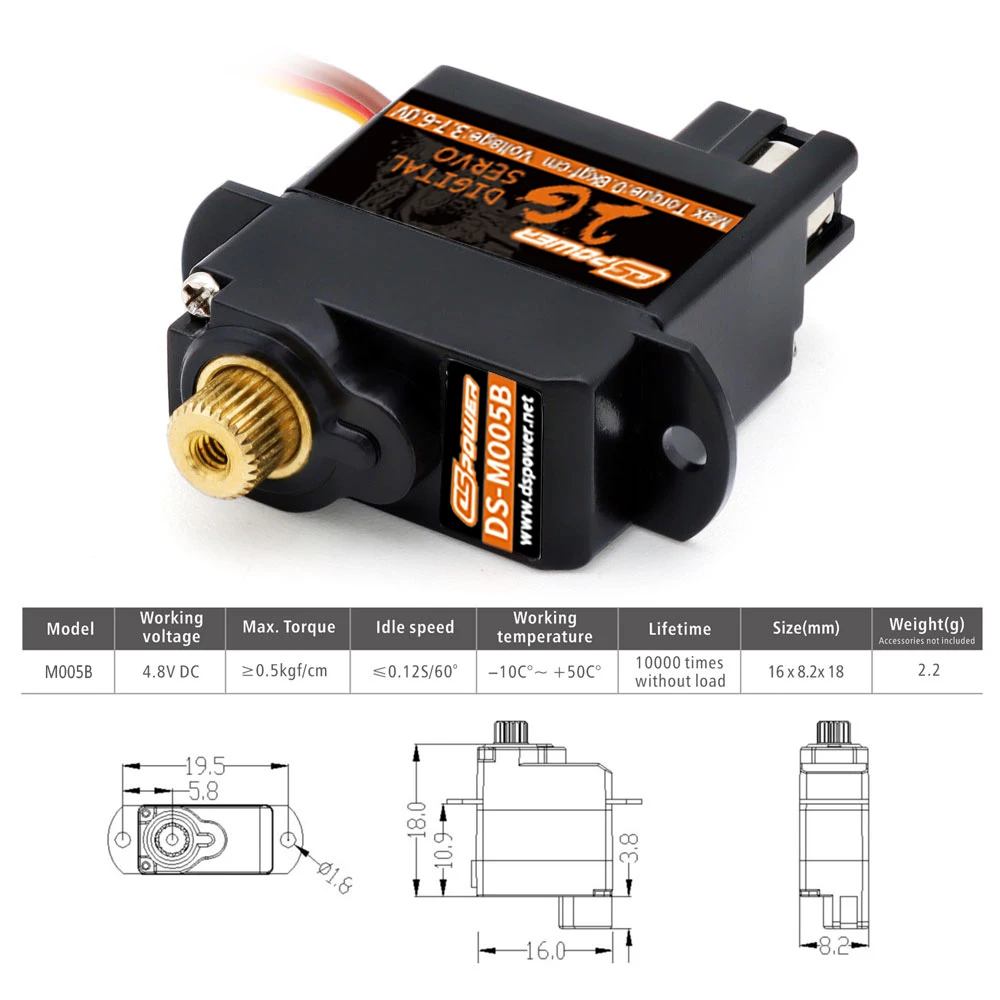

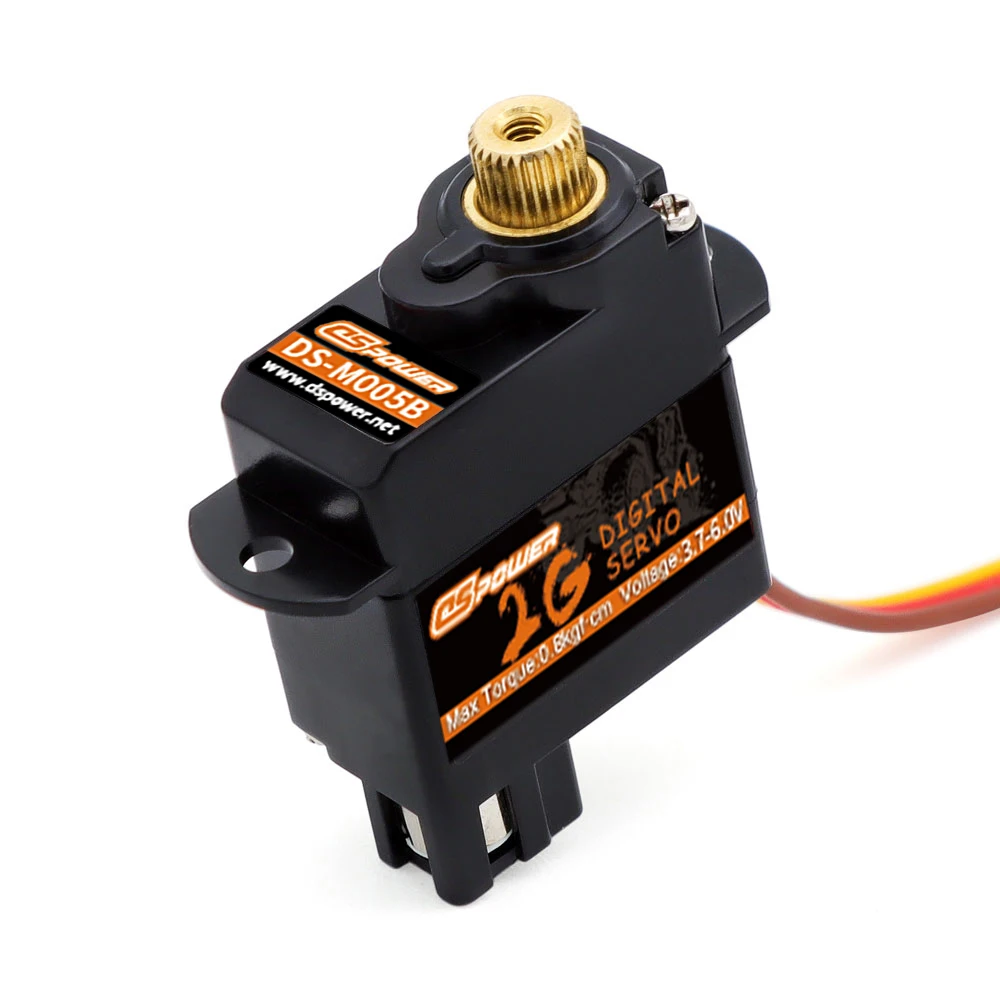

Item name: DSpower M005B
Quantity: 1pcs
Operating Voltage : 3.7~6V DC
Max. Torque : 4.8V≥0.45kgf·cm ;6V≥0.5kgf·cm
No Load Speed : 3.7V≦0.08sec/60° ; 4.2V≦0.06sec/60°
Stall Current:4.8V≦550mA;6V≦600mA
Consumption Current* (No Load):4.8V≦60mA;6V≦80mA
Max. Operating Travel Angle:180° ±1° (500~2500 us)
Dead Band Width: ≤ 1 us
Mechanical Limit Angle: 360°
Communication Interface: PWM
Motor Type: Coreless motor
Case Material: ABS

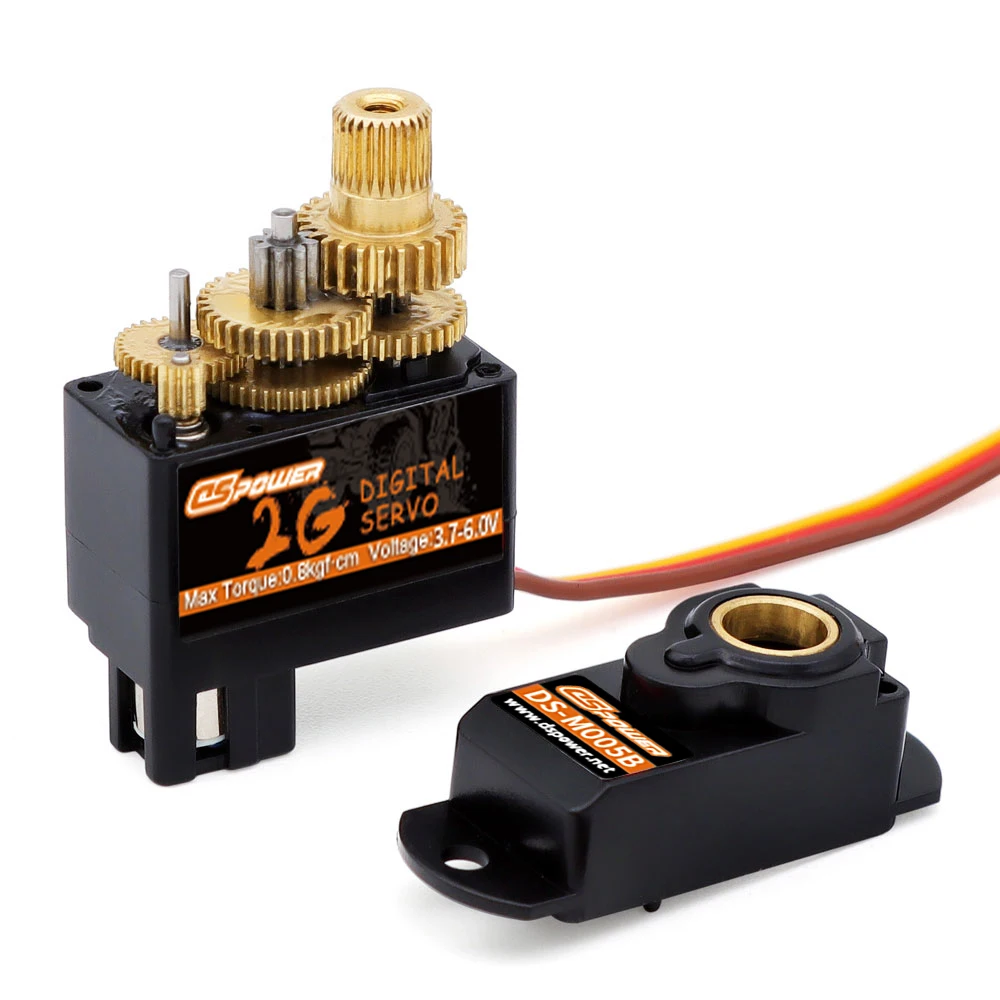

Gear Set Material : Metal gear
Weight:5.4g
Size: 16.7 × 8.2 × 17mm

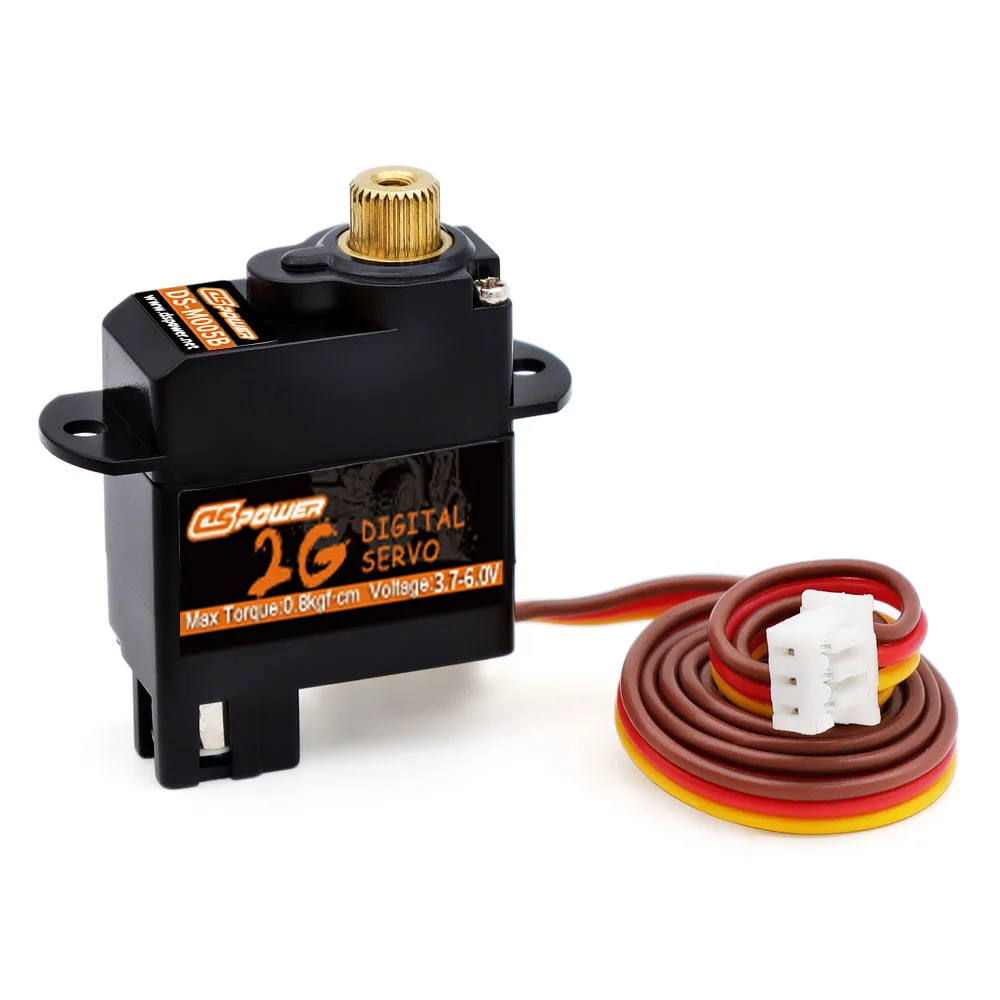

Length of Connector cable: JR 200±5mm (exposed without plug)

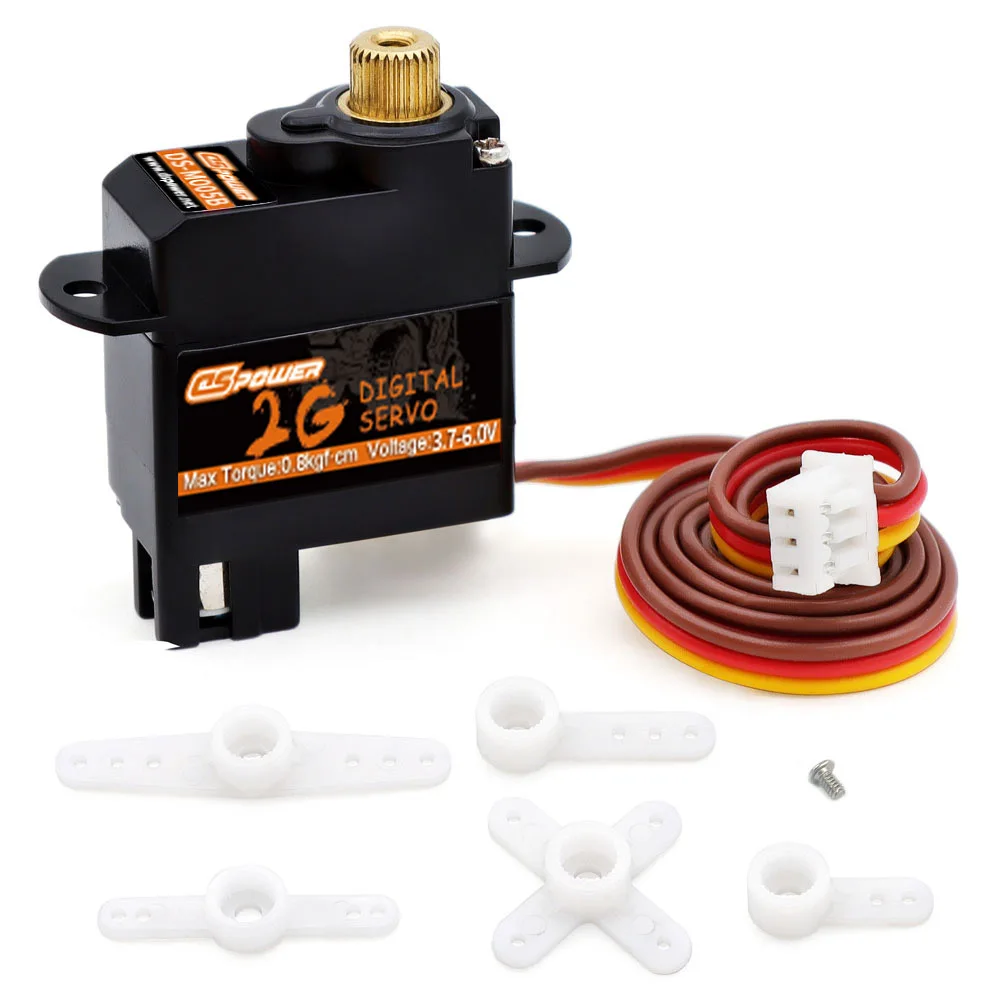

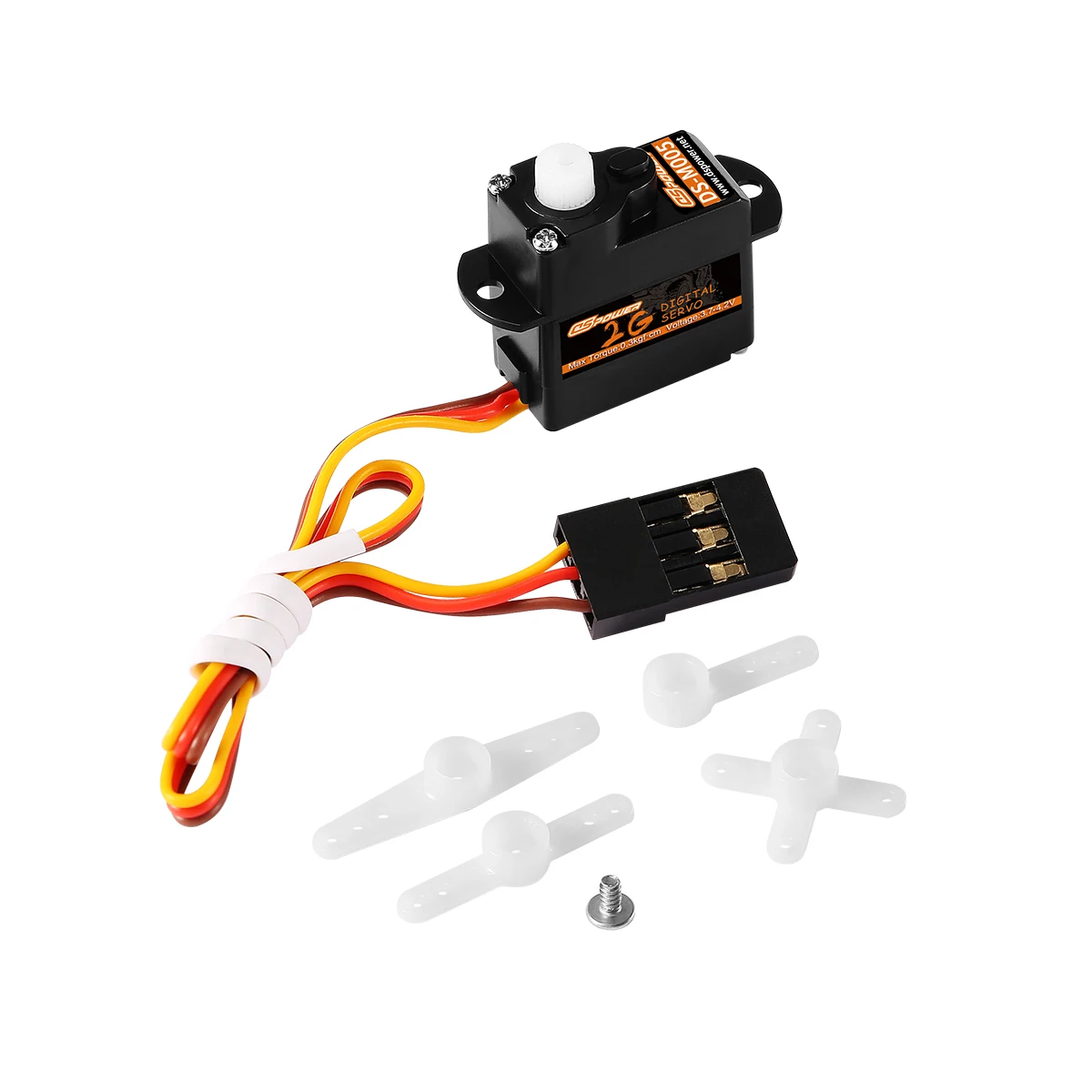

Package included:
1 * 2G Digital Servo
1 * Accessories
